Apron Conveyer

Short Description:

Widely used in machinery, foundry, metallurgy, chemistry, materials, power, mining, and other industry sections, Apron Conveyer of model BLT is kind of general purpose stationary mechanized transport equipment. Used in transportation of massive scattered materials or weight of single-piece especially adaptable to materials of large volume, sharpness, heavy-weight, high temperature and corrosion. Meanwhile, processes such as cooling, drying, heating, cleaning and classifying can be done durin...


Product Detail

Product Tags

20165161430220

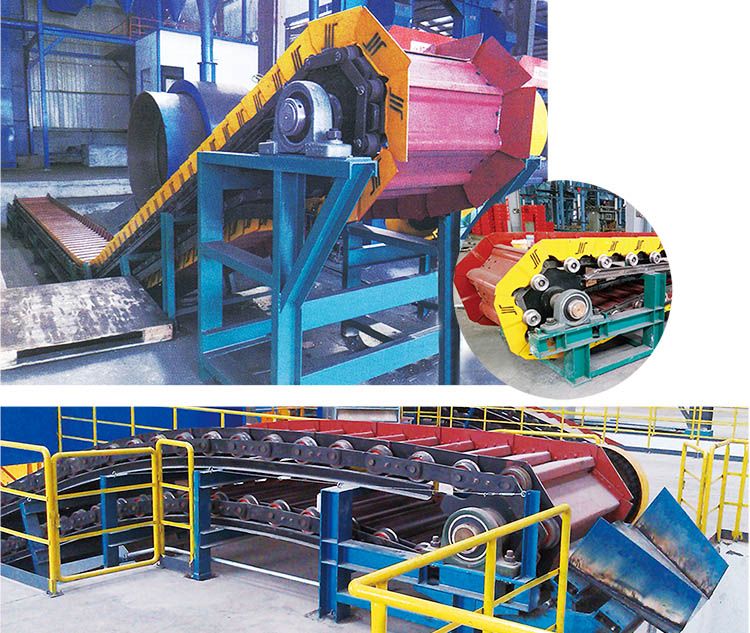

Widely used in machinery, foundry, metallurgy, chemistry, materials, power, mining, and other industry sections, Apron Conveyer of model BLT is kind of general purpose stationary mechanized transport equipment. Used in transportation of massive scattered materials or weight of single-piece especially adaptable to materials of large volume, sharpness, heavy-weight, high temperature and corrosion. Meanwhile, processes such as cooling, drying, heating, cleaning and classifying can be done during the transportation.
In comparison with model BLT, Apron Conveyer of model JYB is suitable for transporting heavy casting.

The Specification Of Apron Conveyer

Model Width Of Apron (mm) Hight Of Trough (mm) Allowable Load Of Traction (kg) Max.Inclination Allowable β Motion Speed (m/min) Pitch Of Chain(mm)
BLT65 650 125 80 <25° 0.8-6 Stepless Speed Regulation 250
BLT80 800 160 120 320
BLT100 1000 160 200 320
BLT120 1200 200 250 320
JYB80 800 135 400 320
JYB100 1000 135 500 320
