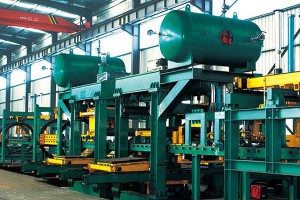

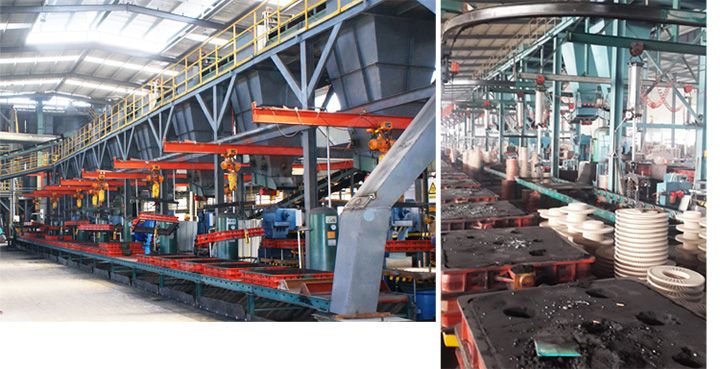

Continuous Mechanized Moulding Line
XZ14 Series Joet-Squeeze Moulding Line is the ideal equipment in mass production for foundry factory. Its advantages are less investment, quick returns, reduce labor intensity, raise cast quality, easy operation and maintenance.
The kind of moulding line adopt the joet-squeeze moulding machine, the mould conveyer transfer casting mould go on pouring with cool. The worker carry flask and sand mould through air hang, as well as core filling, match flask, and pouring etc, process adopt semi-automatic operation, the roller machine return flask.
Major equipments compositions are as follows:
◆XZ14 Series Joet-Squeeze Moulding Machine (according to flask size).
◆Two way air hang.
◆Poring ring rail, Ladle etc.
◆Fall sand machine.
◆Return flask transport roller machine.
◆Flask (single wall,material：ductile iron).
◆ Y21 Series Mould Conveyer
This machine, the equipment collocated for moulding line, makes different process such as moulding, core filling, casting, flask shaking be connected together to form a close moulding line. It is the ideal equipment to realize the moulding mechanization and automation. Generally, it is continuously sperated, but can be beam walking style also as the requirement. The whole length and layout depends on the moulding specifications and the conditions of the workshop.
The Specification Of Continuous Mechanized Moulding Line
