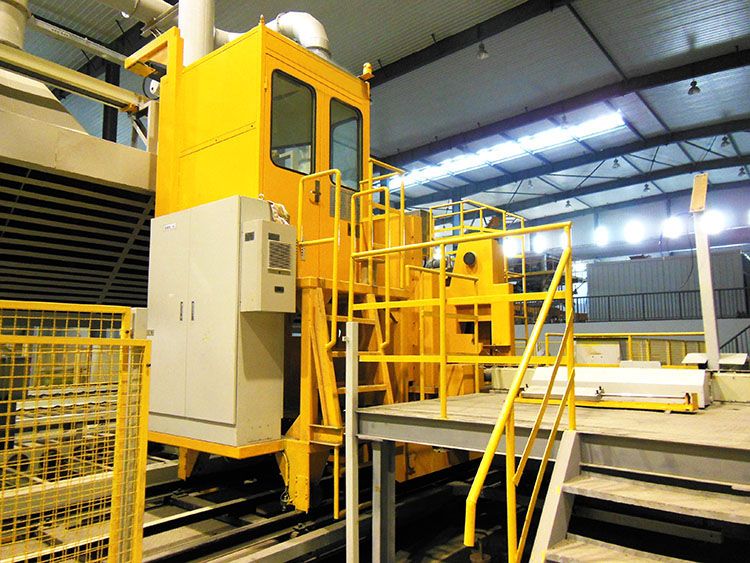

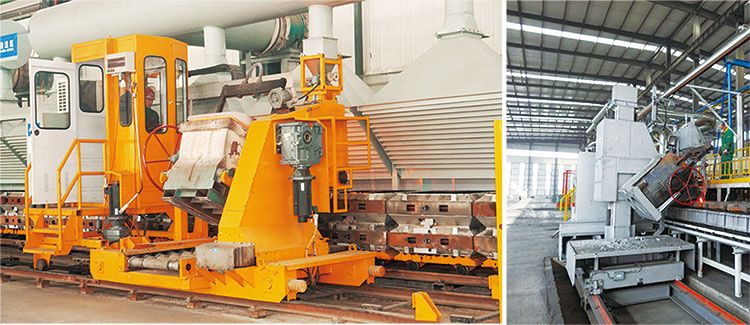

Semi-Automatic Pouring Machine

Short Description:

Semi-automatic pouring machine is suited for work in semi-automatic mode,guided by operator with joystick. consist of fan-shaped pouring ladle, servo tilting mechanism, longitudinal vehicle rail system, transferring system,control and operation system,safe system, cable device, stream inoculation device, etc. With three freedom of longitudinal travels,transverse travels and tilt pouring , it’s widely used in all kinds of moulding line for grey iron, ductile iron,included flask moulding and...


Product Detail

Product Tags

Semi-automatic pouring machine is suited for work in semi-automatic mode,guided by operator with joystick. consist of fan-shaped pouring ladle, servo tilting mechanism, longitudinal vehicle rail system, transferring system,control and operation system,safe system, cable device, stream inoculation device, etc. With three freedom of longitudinal travels,transverse travels and tilt pouring , it’s widely used in all kinds of moulding line for grey iron, ductile iron,included flask moulding and none-flask moulding line.

Ladle transport: By crane or forklift.
Ladle capacity: 1000kg-2500kg.
Pouring speed: 15-22kg/sec.
2016516164320 20165161423370
